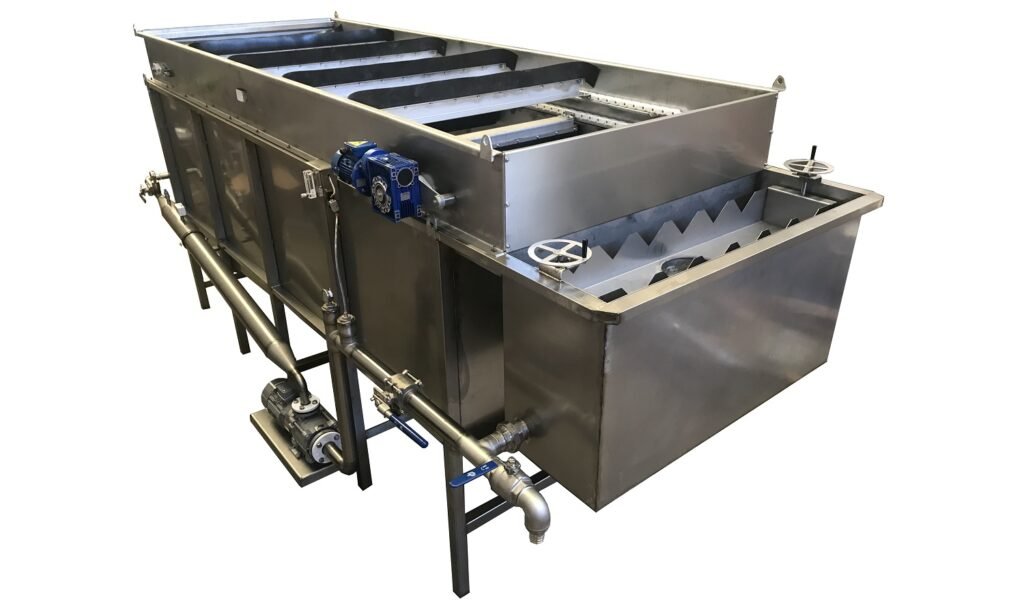

DAF – Dissolved Air Flotation

Industrial wastewater treatment.

Municipal wastewater treatment.

Desalination water reuse processes.

Wastewater with high suspended solids loads.

Oil and grease reduction after pre-treatment processes.

Biological treatment inlet pollutant load reduction.

Final clarification before discharge into the natural environment.

Sludge thickening to reduce sludge volume.

Physicochemical separation process using micro air bubbles.

Suitable for wastewater with high suspended solids concentration.

Provides flotation and separation of solids through air bubble attachment.

Includes coagulation and flocculation stages.

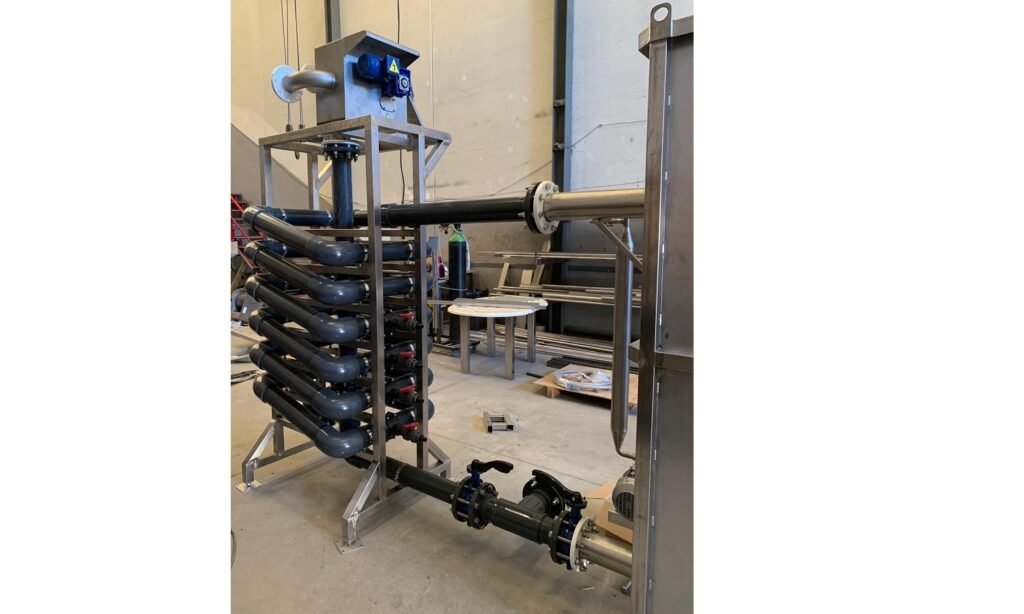

Uses pressurised air-saturated water injection for bubble generation.

Equipped with a scraper system for sludge and scum removal.

Clarified water is discharged through a spillway and outlet flange.

Heavy particles are removed from the bottom of the tank by a pump.

Conventional DAF systems operate with a Hydraulic Head (HH) of 5–15 m/h.

High-performance DAF systems can operate with a Hydraulic Head (HH) of 15–30 m/h.

Efficient solid-liquid separation.
Provides faster flotation compared with conventional decanters.
Up to 5 times higher ascent speed than conventional decantation systems.
Produces sludge with higher solid concentration.
Reduces time, space, dewatering, and drying costs.
Low maintenance requirements.
Easy operation.
Helps protect membranes during desalination processes.

The influent wastewater is mixed with coagulant and flocculant to form larger flocs. Pressurised water saturated with air releases micro air bubbles that attach to suspended particles, causing them to float to the surface. A scraper system collects the floated sludge and scum into a hopper, while clarified water exits through the outlet. Heavier particles settle at the bottom and are removed by a pump.
