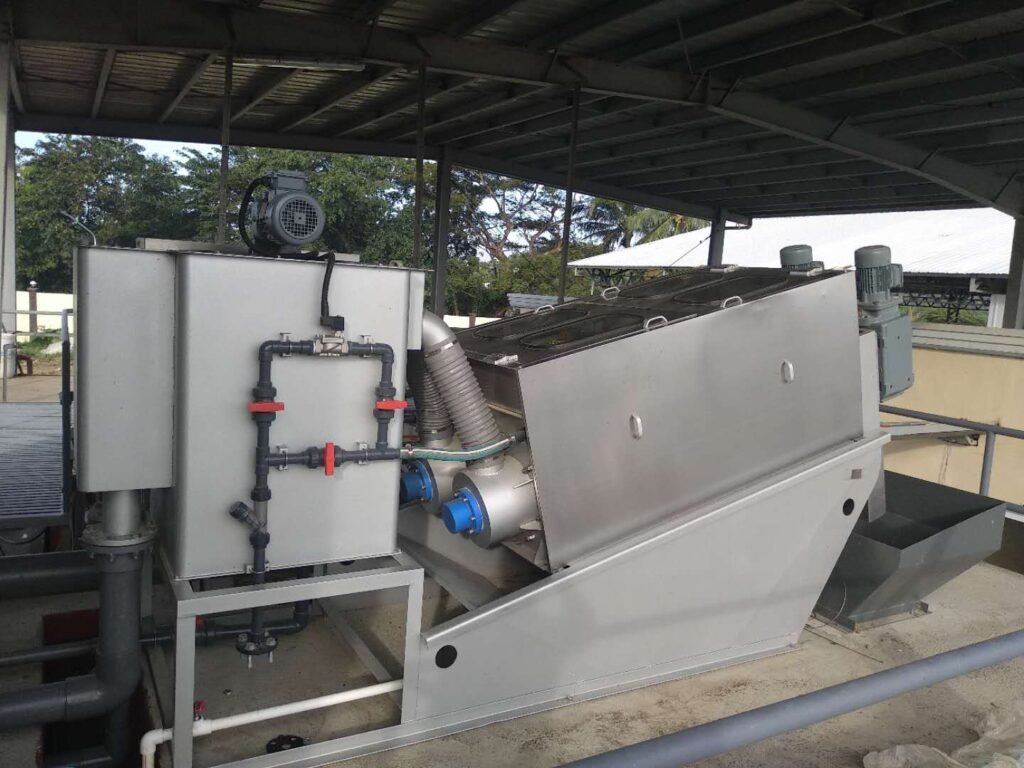

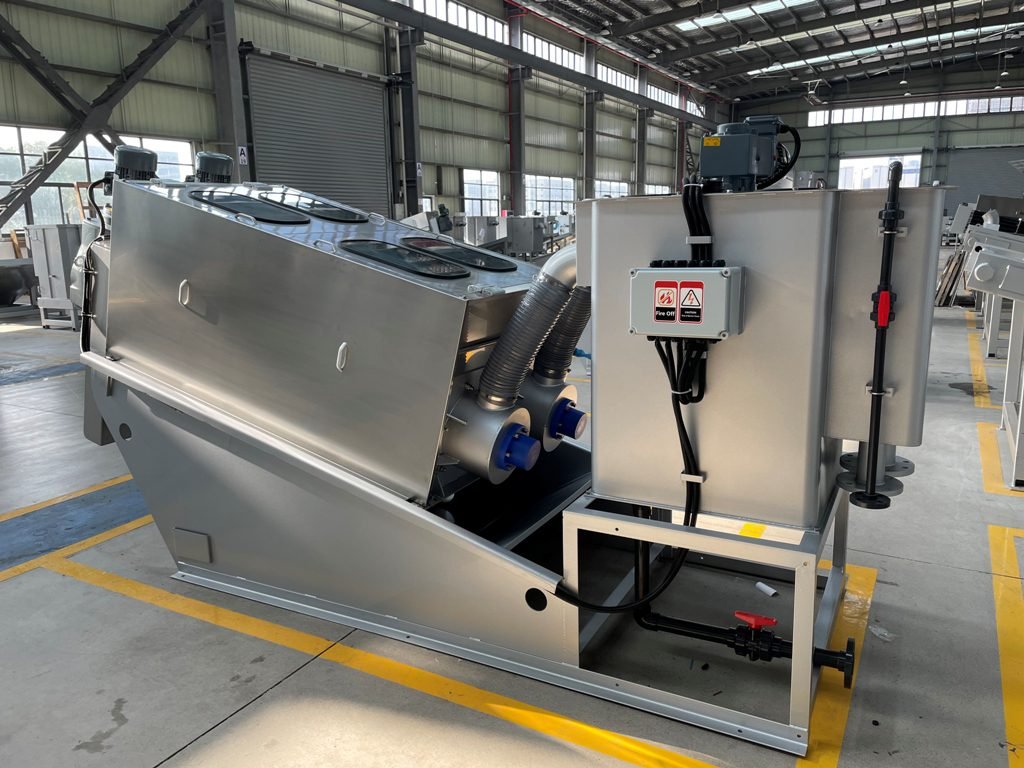

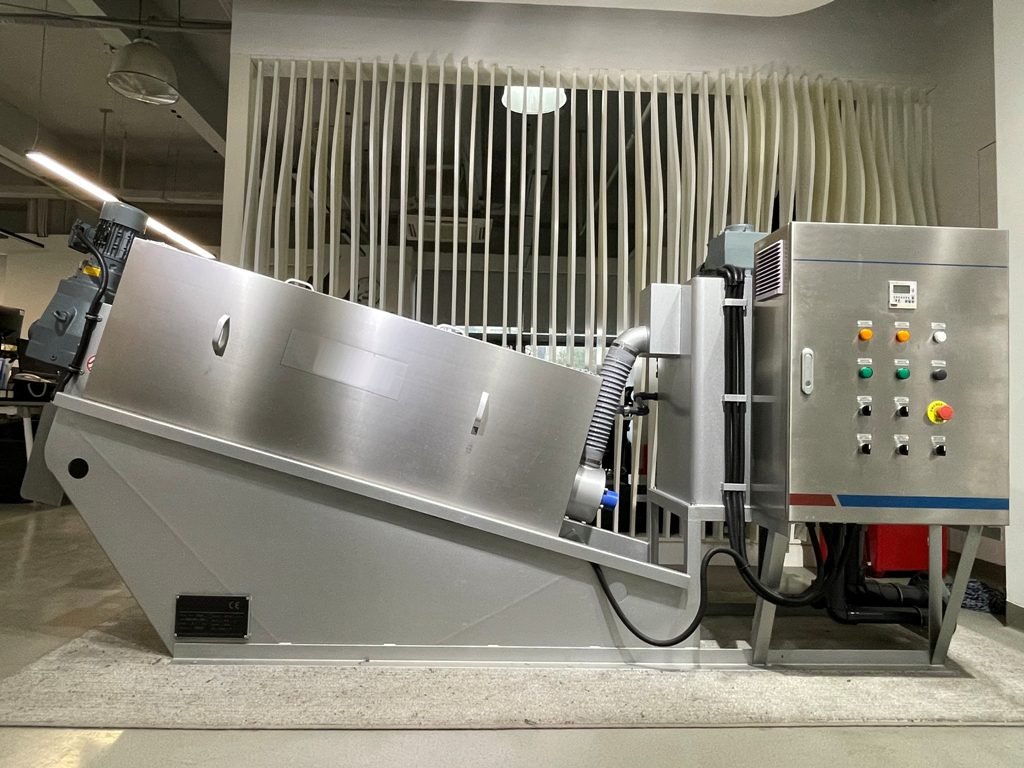

Sludge Dewatering (Multiplate Screw Press)

Sludge Dewatering (Multiplate Screw Press)

Municipal wastewater treatment plants.

Industrial wastewater treatment plants.

Petrochemical industry.

Paper industry.

Chemical industry.

Food and agricultural industries.

Applications involving oily and low-concentration sludge.

Designed for sludge thickening and dewatering processes.

Suitable for sludge concentrations from 5,000 mg/L to 50,000 mg/L.

Capacity range from 4 to 960 kg-DS/hr.

Continuous operation with low maintenance requirements.

Equipped with: Mobile and fixed ring dewatering system, Pre-thickening device, Flocculation tank connection, Adjustable pressure control system.

Low-speed operation: 2–4 rpm rotation speed.

Low energy consumption: Approximately 0.01–0.1 kWh/kg-DS.

Low electrical consumption compared with traditional dewatering systems.
Suitable for low concentration and oily sludge.
Self-cleaning design prevents clogging.
No filter cloth replacement required.
No high-pressure cleaning water required.
Reduces odour and secondary contamination risks.
Allows continuous 24-hour operation.
Reduces civil construction costs by eliminating the need for separate sludge thickening tanks.
Requires minimal maintenance and operation skills.

The sludge is first mixed with flocculant in the flocculation tank to achieve uniform conditioning. The conditioned sludge enters the screw press chamber and moves towards the discharge area. As the internal space becomes narrower, pressure increases, separating water from sludge through the gaps between the fixed and moving rings. The dewatered sludge cake is then discharged from the end of the machine.

Fixed and Moving Rings: Stainless steel components.

Screw Shaft: Stainless steel construction.

Dewatering Chamber: Stainless steel structure.

Frame and Supporting Structure: Stainless steel or coated steel (depending on configuration).

Flocculation and Feeding Components: Corrosion-resistant materials suitable for wastewater applications.
